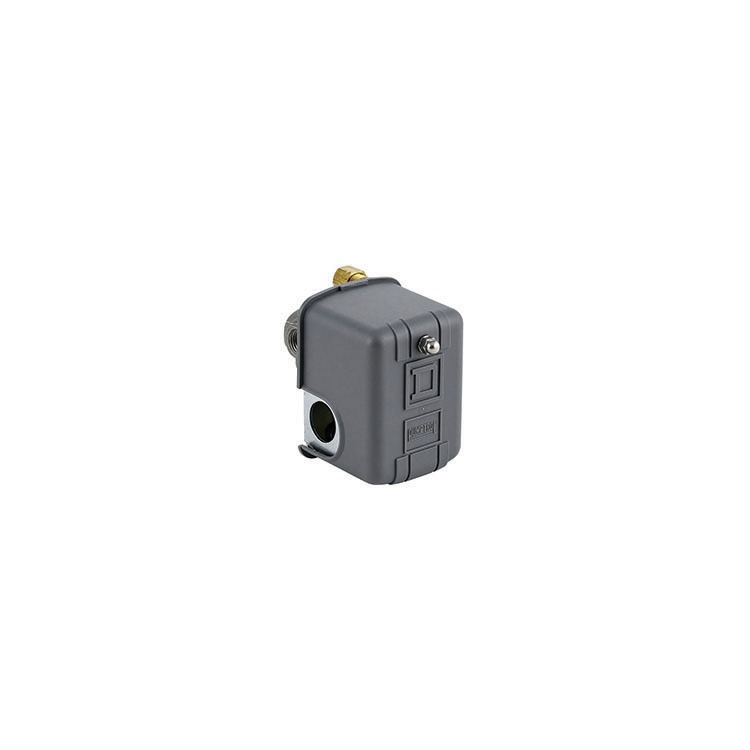

Ensure precise mechanical regulation of your pneumatic machinery with the Square D Pumptrol 9013FHG52J59X Air Compressor Pressure Switch. Manufactured by Schneider Electric under the trusted Telemecanique brand line, this heavy-duty, diaphragm-actuated switch is explicitly rated for industrial-grade electric motors of 2 hp or greater. It comes pre-calibrated from the factory with a precise 175 psi cut-out threshold and a fixed 40 psi differential, working within an adjustable cut-out operational spectrum from 100 to 200 psi. Designed with a standard 1/4-inch NPSF internal fluid connection for trouble-free plumbing integration, the switch features two-pole, normally closed contacts that open automatically on rising pressure. This high-reliability control component includes an integrated 2-way pressure release unloader valve to exhaust head pressure, housed securely within a protective NEMA Type 1 indoor enclosure that is both UL Listed and CSA certified.
| • Professional-grade standard pressure switch engineered for heavy-duty, electrically driven air compressors.
• Pre-calibrated factory settings established at a 175 psi cut-out threshold with a fixed 40 psi differential. • Versatile internal configuration supports an adjustable operational cut-out range from 100 to 200 psi. • Optimized structural design handles high-performance commercial electric motors of 2 hp or greater. • Integrated 2-way pressure release valve automatically bleeds off pump head pressure for safer restarts. | • Diaphragm-actuated mechanical sensor ensures long-term calibration accuracy and consistent response.
• Heavy-duty 2-pole, normally closed contact blocks automatically open on rising system pressure. • Standard 1/4-inch NPSF internal fluid plumbing port facilitates a quick, leak-free system installation. • Protective NEMA Type 1 indoor-rated layout is fully UL Listed and CSA certified for total code compliance. • Authentic Telemecanique control component precision-built under legendary Schneider Electric engineering. |
