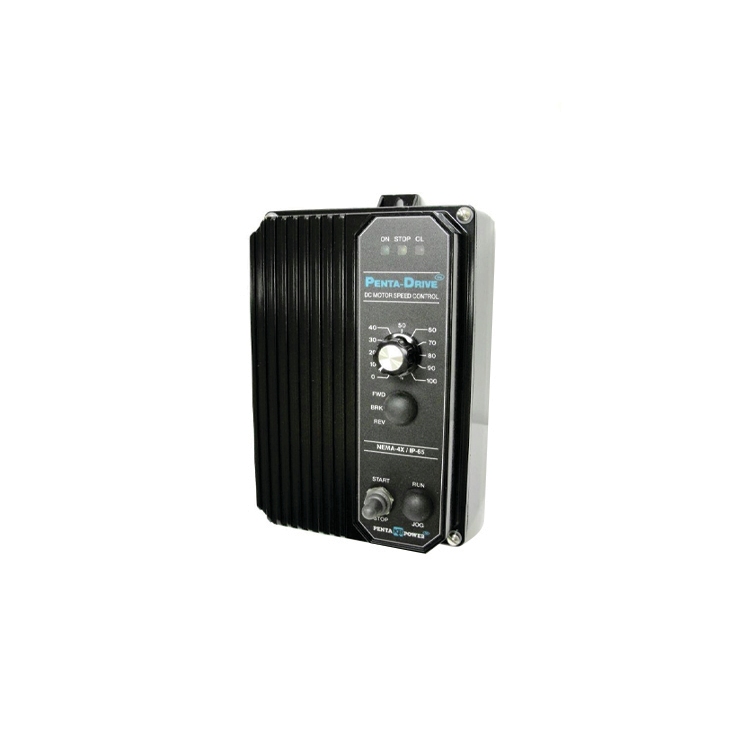

Protect your equipment with the KBPC-240D (9338) SCR DC Drive. Housed in a rugged NEMA 4X die-cast aluminum enclosure, this 2 HP controller is built for washdown and high-humidity environments. It features exclusive Short Circuit and Timed Current Limit (TCL) circuitry to prevent motor burnout and demagnetization. With adjustable speed and torque control, plus selectable feedback types, it delivers precise motor management for industrial applications. Trust KB Electronics for long-lasting performance.
| • This KBPC-240D drive supports up to 1 HP at 115V or 2 HP at 230V AC input.
• The NEMA 4X IP65 enclosure is designed for washdown and watertight integrity. • Die cast aluminum housing is protected with an anti-corrosive acrylic coating. • Timed Current Limit (TCL) circuitry prevents motor burnout and damage. • Selectable armature or tachometer feedback ensures precise speed regulation. | • Adjustable trimpots allow for custom Accel, Decel, Min, and Max speed settings.
• The unit features built-in armature fusing to protect the drive from overloads. • Three diagnostic LEDs provide status for Power On, Stop, and Overload conditions. • A wide 50 to 1 speed range provides flexibility for various motor applications. • This 9338 model is UL and cUL approved for industrial safety and compliance. |
