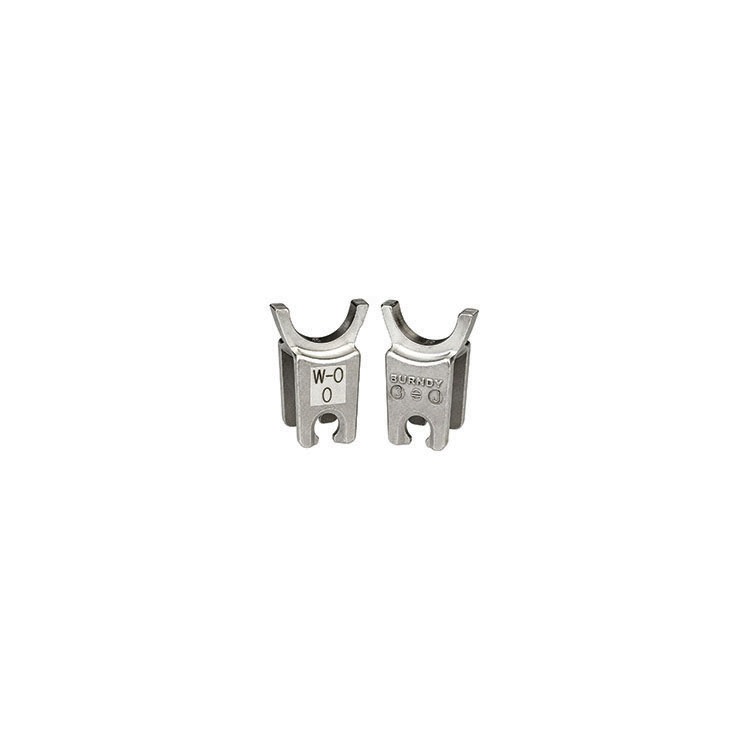

Achieve professional-grade, code-compliant compression joints with the Burndy WO Stainless Steel W Die Set (Index O). This premium twin W-RT style die set is built from high-strength stainless steel to resist wear and corrosion in harsh industrial field conditions. Explicitly engineered to produce a secure, high-conductivity circumferential crimp, the WO die set is compatible with industry-standard Burndy MD6 and MD7 mechanical line tools, PAT600 and PATMD series battery-actuated crimpers, as well as the Y500CTHS hydraulic tool. Offering exceptional application versatility across electrical utility and commercial wiring projects, it handles copper conductors from 14 Sol. through 350 KCMIL, AAC wires from 14 Sol. to 3/0 AWG, and ACSR lines from #2 AWG up to 3/0 AWG.
| • Premium W-style compression die set precision-forged from high-grade stainless steel for long service life.
• Clearly marked with distinct Index O identification to ensure proper connector pairing and inspection. • Engineered to form a secure, permanent circumferential crimp for optimal electrical conductivity. • Twin W-RT style mechanical profile guarantees uniform force distribution and consistent crimps. • Fully compatible with standard Burndy MD6 and MD7 manual line worker mechanical tools. | • Seamlessly integrates with high-efficiency PAT600 and PATMD battery-powered hydraulic crimpers.
• Expands operational utility by interfacing with the heavy-duty Y500CTHS hydraulic tool system. • Accommodates a broad copper conductor range from 14 AWG Solid up to 350 KCMIL. • Supports All Aluminum Conductor (AAC) sizes spanning from 14 AWG Solid to 3/0 AWG. • High-strength jaws process Aluminum Conductor Steel Reinforced (ACSR) lines from #2 AWG to 3/0 AWG. |
