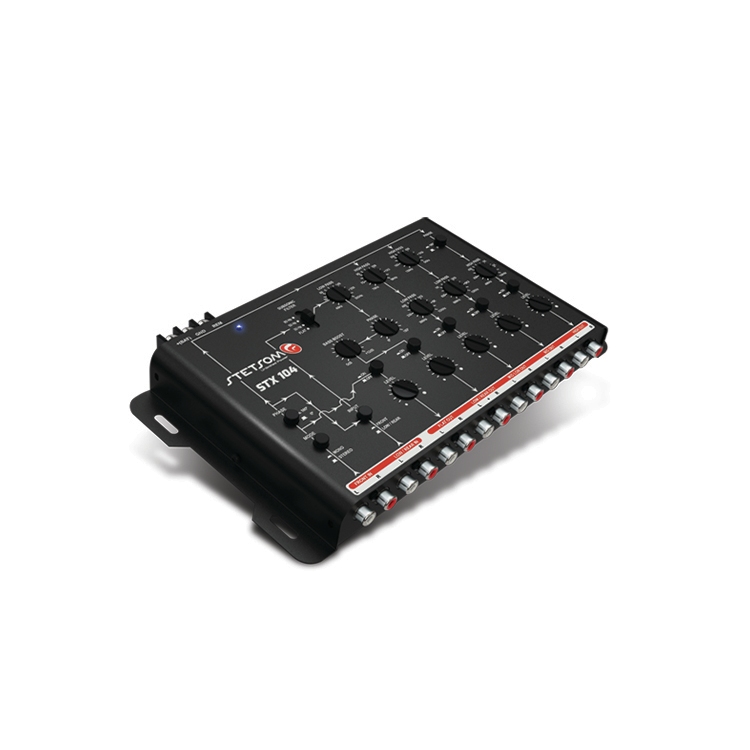

MODEL: CROSSOVER STX104
Achieve precise audio separation with the Stetsom STX104 Multi-Way Automotive Electronic Crossover. Engineered for high-performance sound systems, this analog processor features independent frequency adjustments across High (400Hz–10KHz), Mid (150Hz–12.5KHz), and Low (70Hz–10KHz) outputs. Boasting a massive 9V RMS maximum output voltage and an exceptional signal-to-noise ratio over 90dB, it guarantees a clean signal to your amplifiers while maintaining less than 0.02% total harmonic distortion.
| • Multi-way electronic filtering optimizes individual speaker frequency response.
• Adjustable High channel covers a wide range from 400Hz up to 10KHz. • Dedicated Mid channel manages frequencies from 150Hz up to 12.5KHz. • Tunable Low channel controls subwoofer or mid-bass cuts from 70Hz to 10KHz. • Delivers a powerful 9V RMS maximum output voltage for ultra-clean signal drive. | • Features a wide frequency response extending from 20Hz all the way to 200KHz.
• High-fidelity analog design keeps distortion extremely low at under 0.02% THD. • Excellent channel separation over 80dB prevents unwanted signal cross-talk. • Compact 33 x 264 x 160 mm chassis allows for clean, space-saving installation. • Operates safely on standard automotive 10V to 16V DC power configurations. |
